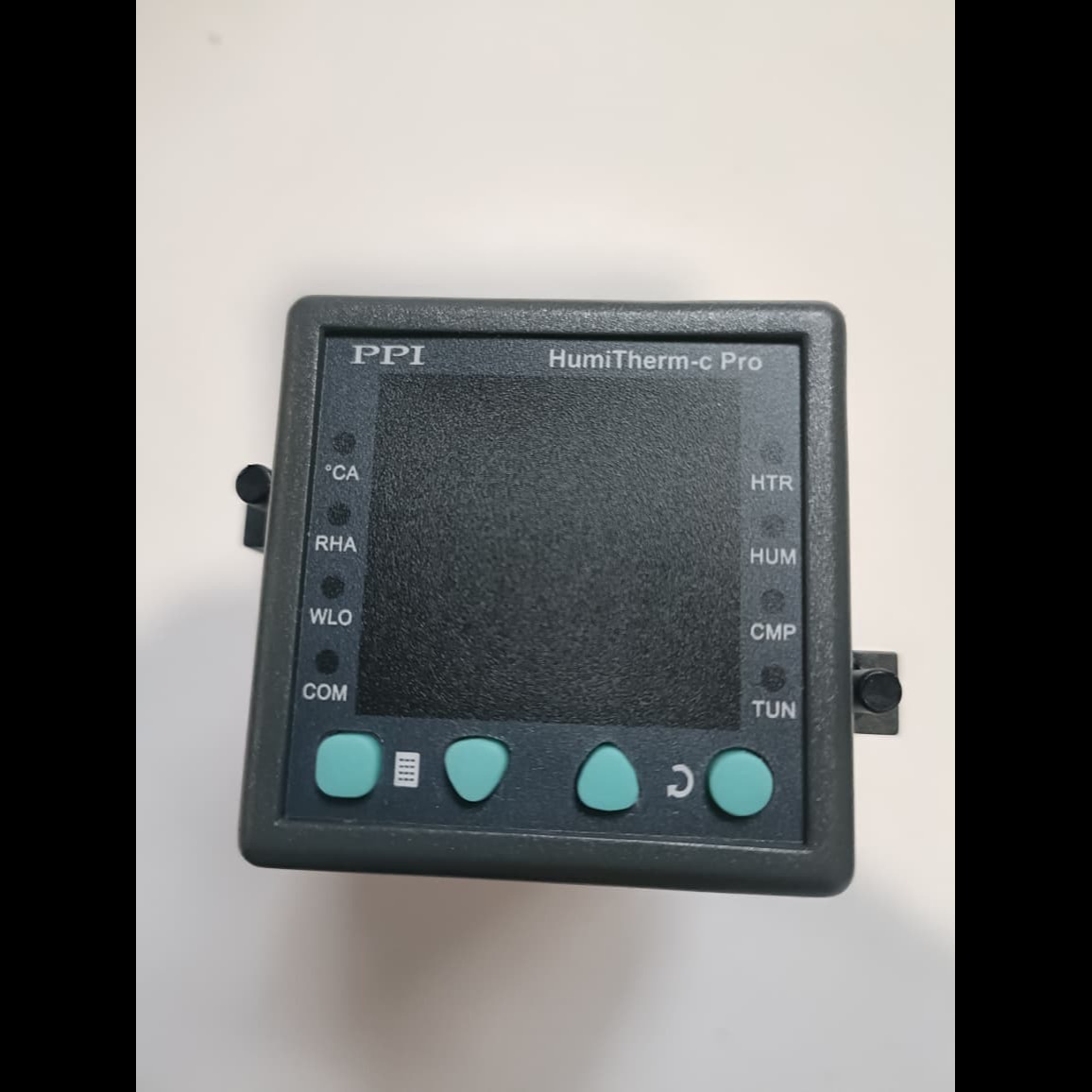

Advanced Temperature + Humidity Controller, Temperature + Humidity Controller
What is New:
Extended Input Types for Temperature & Humidity Channels
8 LEDs for Status Indications
Separate Relay / SSR Outputs for Compressor & Alarm
Factory Set Excitation Voltage (5/12/24 VDC @ 30 mA)
Digital Input for Low Water Level Detection
No Jumper Settings for Input / Output Configuration
RS485 Serial Port (MODBUS RTU) as Standard
Plug-in Terminals for Easy Installation
Reduced Enclosure Depth (94 mm with Terminals)
Features
Independent Displays for Temperature & Humidity
Factory Set Input Versions :
(1) Temperature RTD / RH Sensor (V/mA output)
(2) Dry Bulb RTD / Wet Bulb RTD
Independent Zero Offset Adjustment for Temperature & Humidity
Self Tune PID Control Loops for Temperature & Humidity
SSR Outputs for Heating and Humidification Control
Relay / SSR Outputs for Compressor & Alarm
Digital Input for Low Water Level Detection
Universal Supply Voltage : 85~264 VAC, 50/60 Hz
DIN Standard Dimensions (mm) : 48(H) X 48(W) X 94(D)
Category: Single/Dual Loop Process Controllers
