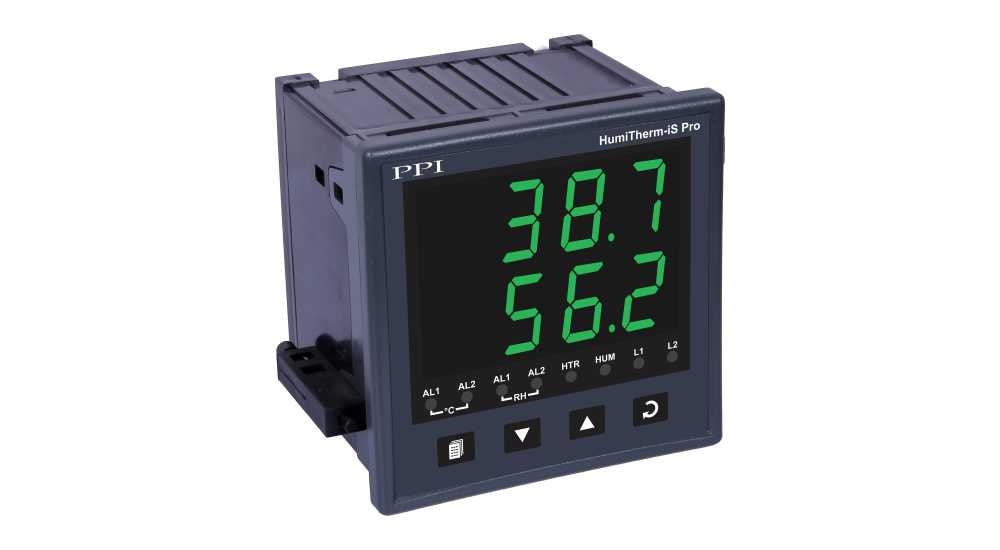

HUMITHERM IS PRO

Ÿ 2 Rows of JUMBO Bright Green 0.8 inch 7-Segment LED

Display, Designed for Sunlight Readability

Ÿ Universal Inputs (RTD/mA/V for Temperature & %RH) with

Selection for Dry/Wet Configuration

Ÿ Min/Max Monitoring of Temperature & %RH Values

Ÿ Isolated Retransmission Outputs for Temperature & %RH

Ÿ Free PC Software for Online Data Monitoring & Recording

Ÿ 2 Independent Alarms for Temperature & %RH Each with

Relay/SSR Outputs

Ÿ On-Off Control Loops for Temperature & %RH with

Direct/Reverse Logic

Ÿ 24V or 12V or 5V DC Excitation Voltage for Transmitters

Ÿ Digital Input for Remote Alarm Acknowledgment

Ÿ RS485 MODBUS/RTU Serial Communication Port

Ÿ Universal Supply Voltage : 85~264 VAC, 50/60 Hz

Ÿ DIN Standard Dimensions (mm) : 96(H) X 96(W) X 84(D)

Ÿ Flame-proof Enclosure (Gas Group IIA & IIB) Available
